Validation

So far, SpinePrep has been run end to end across nine datasets (469 functional runs, of which 450 complete the full chain) spanning rest and four task types (motor, pain/heat, hand-grasp, dorsal-horn), drawn from public (OpenNeuro) and internal cohorts, across multiple vendors and acquisition protocols (with and without fieldmaps; cervical-only and whole-CNS field of view).

Note. Numbers below reflect the locked smoothing kernel (σ = 1/1/8 mm), at which all scopes were reprocessed. The reliability values appeared robust to the kernel change (essentially unchanged on refresh) and the normative tSNR shifted by ~1%. All values are reproducible via the scripts in validation/.

1. Coverage & robustness

All nine datasets run S1→S10 to completion. Attrition is fully reconciled — the number of runs dropped between any two steps equals the number that FAILed the earlier step's QC (no silent losses); every surviving derivative is PASS or WARN.

Scope	Dataset	Paradigm	Runs (S9)	Distortion mode
cospain	ds005883	pain	33	TopUp (reverse-PE)
cosmotor	ds005884	motor	30	TopUp
rest	ds004386	rest	90	SyN (no fieldmap)
handgrasp	ds004616	hand-grasp	35	SyN
dorsalhorn	ds004926	heat/pain	66	SyN
brainspine	ds005075	rest (whole-CNS)	27	SyN
exp	balgrist motor + painmotor	motor	75	SyN

Most runs (roughly four in five) use the image-based SyN fallback — the field reality is that most cord-fMRI data ships no fieldmap. Runs that exceed the TopUp-calibrated displacement ceiling without a fieldmap are flagged distortion-limited, not failed.

2. Test-retest reliability (the rigour)

A preprocessing pipeline must yield reproducible science. We measure the test-retest reliability of pipeline-derived measures via ICC(2,1) (Shrout & Fleiss 1979), computed by validation/reliability_*.py.

The cohort's repeated measures are not uniform, and we label each honestly:

• Between-session test-retest (task data): dorsalhorn.
• Between-session, across an intervention: handgrasp ds004616 — not a plain test-retest. Session 2 was acquired 45–60 min after a 30-minute acute intermittent hypoxia (AIH) protocol (Hemmerling et al., 2023), which was the broader study's purpose. The source paper's own S2−S1 comparison found 4 significant voxels in a single contrast and nothing elsewhere, and the authors averaged the two sessions on that basis; but grip strength did fall measurably between sessions, so the participant's motor state was not identical. We report the ICC with that caveat rather than as reliability.
• Cross-shim reproducibility (same session, auto vs manual z-shim): rest ds004386 — not test-retest.
• Within-session run reliability: balgrist motor (run-01..04).

Per-vertebral-level cord tSNR (test-retest): dorsalhorn ICC(2,1) 0.45–0.75 (mean 0.56, n = 30) — moderate-to-good.

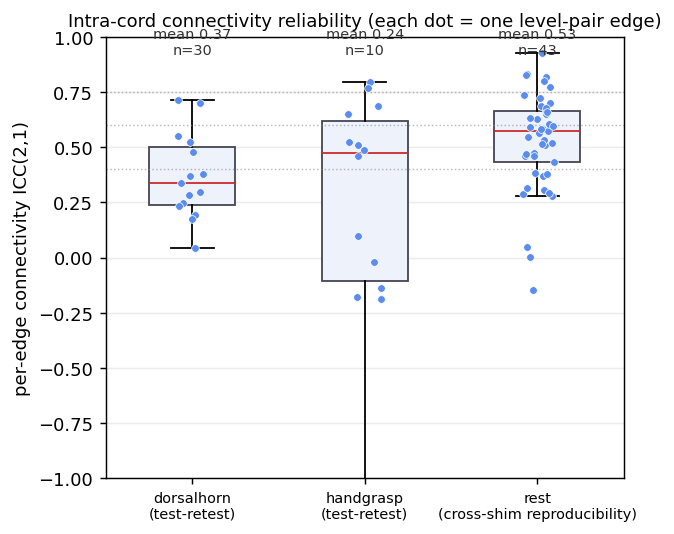

Intra-cord functional connectivity (rostro-caudal level×level edges):

• Test-retest: dorsalhorn mean edge ICC 0.37 (max 0.72); handgrasp 0.24 (max 0.79).
• Cross-shim reproducibility: rest 0.53 (median 0.57, max 0.93).
• Task activation (per-level beta, active-vs-rest): poor — mean ICC ~0.06 (handgrasp, dorsalhorn). Consistent with the known low reliability of cord task fMRI (Dabbagh 2024); the per-level-mean measure also dilutes focal (horn-specific) activation — a limitation of the measure, not the pipeline.

These fair-to-moderate values are consistent with the known difficulty of cord-fMRI reliability — connectivity ICC is predominantly poor in the field (Kaptan 2023; Kowalczyk 2024) and task-activation reliability is poor (Dabbagh 2024). Note split-half temporal stability (Ricchi 2024) runs higher but is inflated relative to true test-retest; we report between-session ICC. Cross-shim reproducibility exceeding between-session test-retest is exactly as expected (same-session is easier than across-day).

3. Normative per-vertebral-level QC reference

A multi-site, multi-paradigm normative QC reference for cord fMRI (validation/normative_qc_db.py): the cohort-wide distribution of every QC metric, resolved per vertebral level where applicable. We are not aware of a comparable per-level reference for cord fMRI, but the cohort is modest and these distributions should be read as a starting point, not a definitive norm.

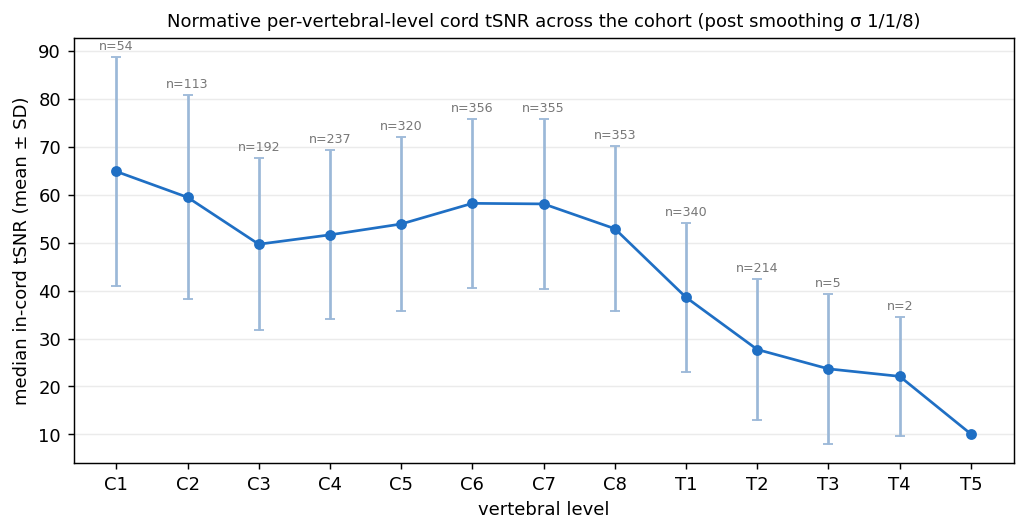

Median in-cord tSNR (post anisotropic smoothing) follows the expected rostro-caudal decline — highest at C6/C7, dropping into the thoracic cord. Full tables: validation/results/normative_qc_metrics.tsv, normative_tsnr_per_level.tsv (n, mean, SD, median, IQR, p5, p95).

4. Head-to-head vs SCT-default

To answer "why not just use SCT's defaults?", we compare functional→anatomical cord registration quality (cord-Dice) between our S6 cord-driven recipe and out-of-the-box sct_register_multimodal on the same runs (validation/headtohead_sct_default.py). The S6 recipe is SpinePrep's own three-stage composition, not a published recipe reproduced verbatim.

Two caveats a reader should weigh before reading the gap below. First, the scoring metric favours our arm by construction: our registration is driven by the cord segmentation, so it optimises the very overlap that cord-Dice measures, while the SCT-default arm is intensity-driven and does not. Part of the gap is therefore attributable to the choice of metric rather than to registration quality, and cord-Dice is best read here as a convergence check. An independent validator is a planned addition. Second, the runs are not fully independent: the 24 comparisons include the same subjects at two sessions and both hands of the same session, so roughly 18 independent subjects contribute. The direction of the effect is consistent across every run; the significance value should be read as indicative rather than exact.

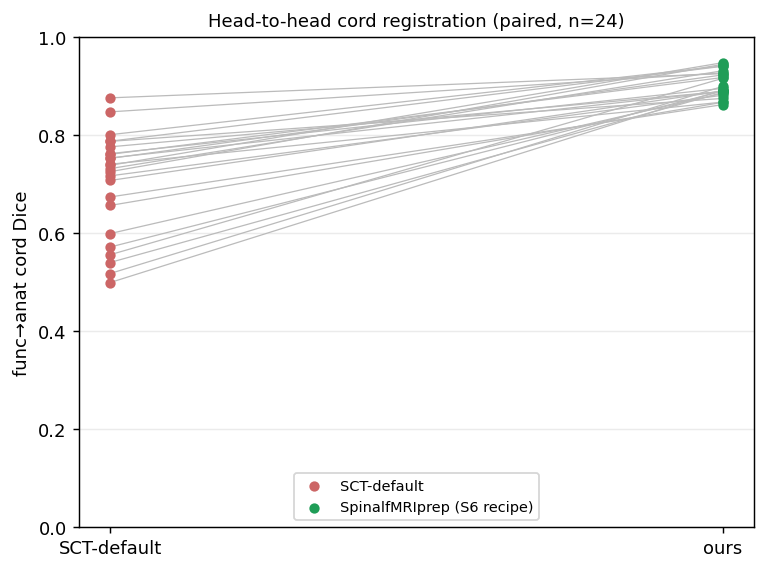

Across 24 runs / 4 cervical scopes (dorsalhorn, handgrasp, cosmotor, cospain), our recipe gives cord-Dice 0.904 ± 0.03 vs SCT-default 0.704 ± 0.10 (+0.20; Wilcoxon p = 1.2×10⁻⁷; ours higher in 24/24 runs) — a large, consistent, highly significant improvement. Note the comparator is SCT's out-of-the-box defaults, not SCT at its best: SCT itself recommends cord-segmentation-driven registration with structural-warp initialization — the very recipe SpinePrep automates. So this quantifies the cost of naive default usage and the value of baking the recommended recipe into a turnkey pipeline, not a claim to out-register SCT's best practice.

5. Reproducibility

Every release ships a reproducibility_receipt.json (tool versions, per-step policy SHA-256, pipeline git SHA), BIDS-Derivatives dataset_description.json, auto-generated methods boilerplate, and CITATION.cff.

What re-running actually guarantees, stated precisely. The registration steps call ANTs through the Spinal Cord Toolbox. Its stochastic sampler is seeded, so the dominant source of run-to-run variation is removed by default, and the receipt records that this was done. Bit-identical output additionally requires fixing the order in which parallel threads combine their results, which is what reproducibility.strict does by pinning the toolkit to a single thread; it costs wall-clock time and is therefore off by default. So the honest claim is: same chain, same policy, same tool versions and same seed reproduce the same numbers, and strict mode is required for byte-identical files. An end-to-end demonstration of that is still outstanding and is tracked as a release claim, not presented as a completed result.
